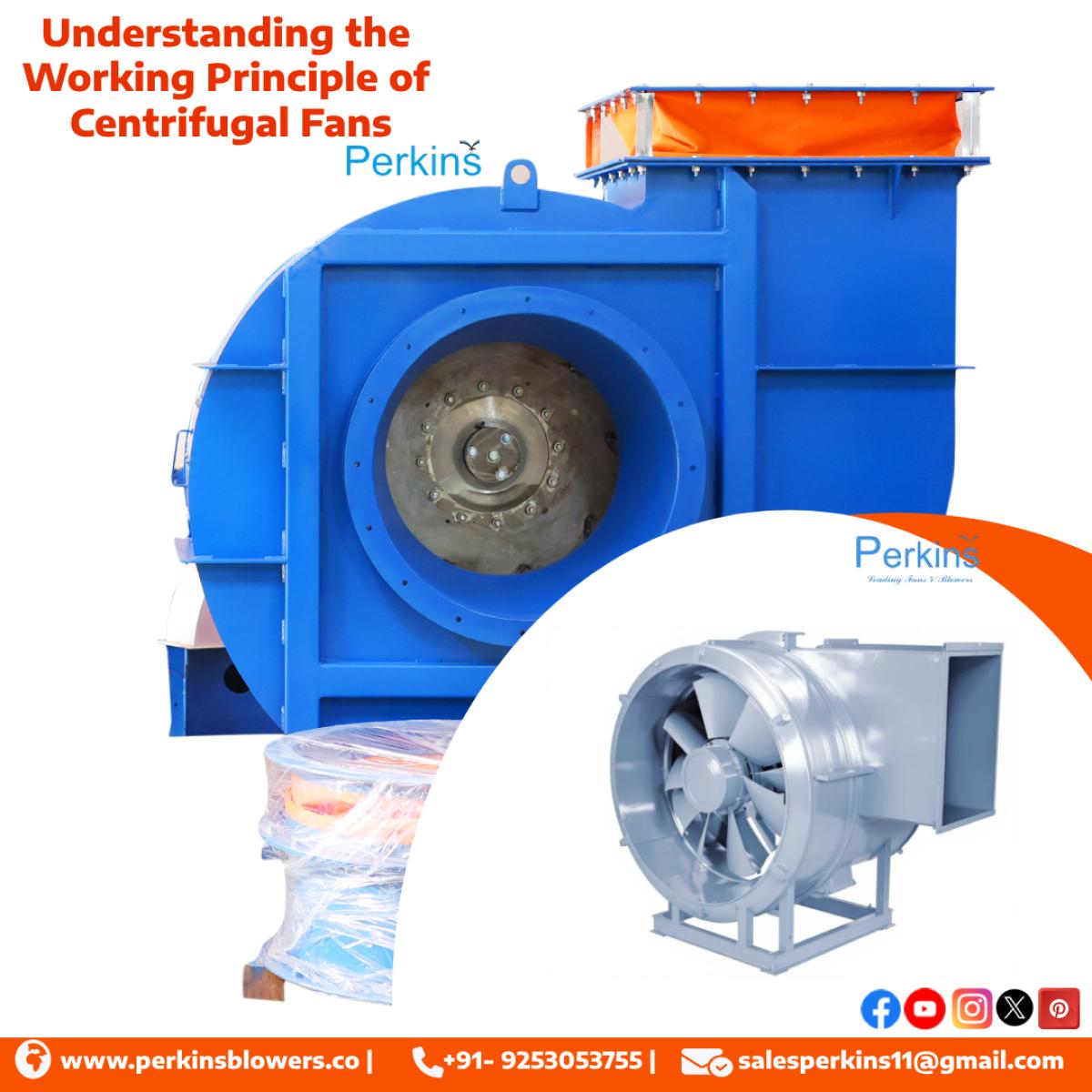

In modern industries and HVAC systems, efficient air movement is essential for ventilation, cooling, drying, and material handling. Among the most widely used equipment for these applications are centrifugal fans. As a leading name in the field, Perkins Blowers takes pride in manufacturing high-quality centrifugal fans designed for optimal performance across a variety of industries. In this blog, we’ll dive into the working principle of centrifugal fans, exploring how they operate and why they are so effective.
What Is a Centrifugal Fan?
A centrifugal fan, also known as a radial fan, is a mechanical device that moves air or gas by increasing its pressure and velocity through the use of a rotating impeller. Unlike axial fans that push air parallel to the shaft, centrifugal fans direct the airflow at a 90-degree angle, making them ideal for high-pressure applications.
Working Principle of Centrifugal Fans
The operation of a centrifugal fan is based on the principle of centrifugal force. Here’s a step-by-step explanation of how it works:
1. Air Enters Through the Inlet
The process begins when air enters the fan through the center or axial inlet, located near the impeller’s hub. This central entry allows the air to be evenly distributed to the rotating blades.
2. Rotation of the Impeller
The impeller, which is a rotating disc with blades mounted on it, spins rapidly when powered by an electric motor. As the impeller rotates, it catches the incoming air and propels it outward using centrifugal force—similar to how water moves to the edge of a spinning bucket.
3. Air Gains Speed and Pressure
As the air moves radially outward from the center of the impeller to its edges, its velocity and pressure increase due to the rotational motion. This transformation of kinetic energy into pressure energy is a key characteristic of centrifugal fans.
4. Air is Directed into the Volute Casing
After gaining speed and pressure, the air enters the fan’s volute casing, a spiral-shaped housing designed to collect and guide the airflow efficiently. The volute helps convert the air’s velocity into even higher pressure.
5. Air Exits Through the Outlet
Finally, the pressurized air is expelled through the discharge outlet, directed at a 90-degree angle from the inlet. This makes centrifugal fans suitable for ducted systems and applications requiring consistent airflow against resistance.
Types of Impeller Blades
The performance and application of a centrifugal fan are influenced by the design of its impeller blades:
-
Forward-Curved Blades: Best for low-pressure, high-volume airflow; typically used in HVAC systems.
-
Backward-Curved Blades: Efficient and quieter; used for medium to high-pressure applications.
-
Radial Blades: Durable and less prone to clogging; ideal for dust-laden or abrasive environments.
Applications of Centrifugal Fans
Due to their high efficiency and pressure-generating capabilities, centrifugal fans are widely used in:
-
Industrial ventilation systems
-
Dust collection units
-
Cooling systems in power plants and machinery
-
Air pollution control equipment
-
HVAC systems in commercial buildings
-
Textile and chemical processing industries
Why Choose Perkins Blowers?
At Perkins Blowers, we specialize in crafting high-performance centrifugal fans that are engineered for reliability, durability, and energy efficiency. Our fans are built using precision engineering and high-quality materials, ensuring long-lasting service even in the harshest industrial environments.
We offer a wide range of centrifugal fan models including SISW (Single Inlet Single Width) and DIDW (Double Inlet Double Width) configurations, along with both belt-driven and direct-driven options. Each fan is rigorously tested for airflow performance, static pressure, noise levels, and vibration, so you can trust it to perform seamlessly in your operations.
Conclusion
The working principle of centrifugal fans is rooted in the efficient use of centrifugal force to move air through systems that demand high pressure and consistent performance. Whether you need ventilation for a manufacturing plant or a reliable air handling solution for your HVAC system, centrifugal fans from Perkins Blowers are the smart, durable choice.
