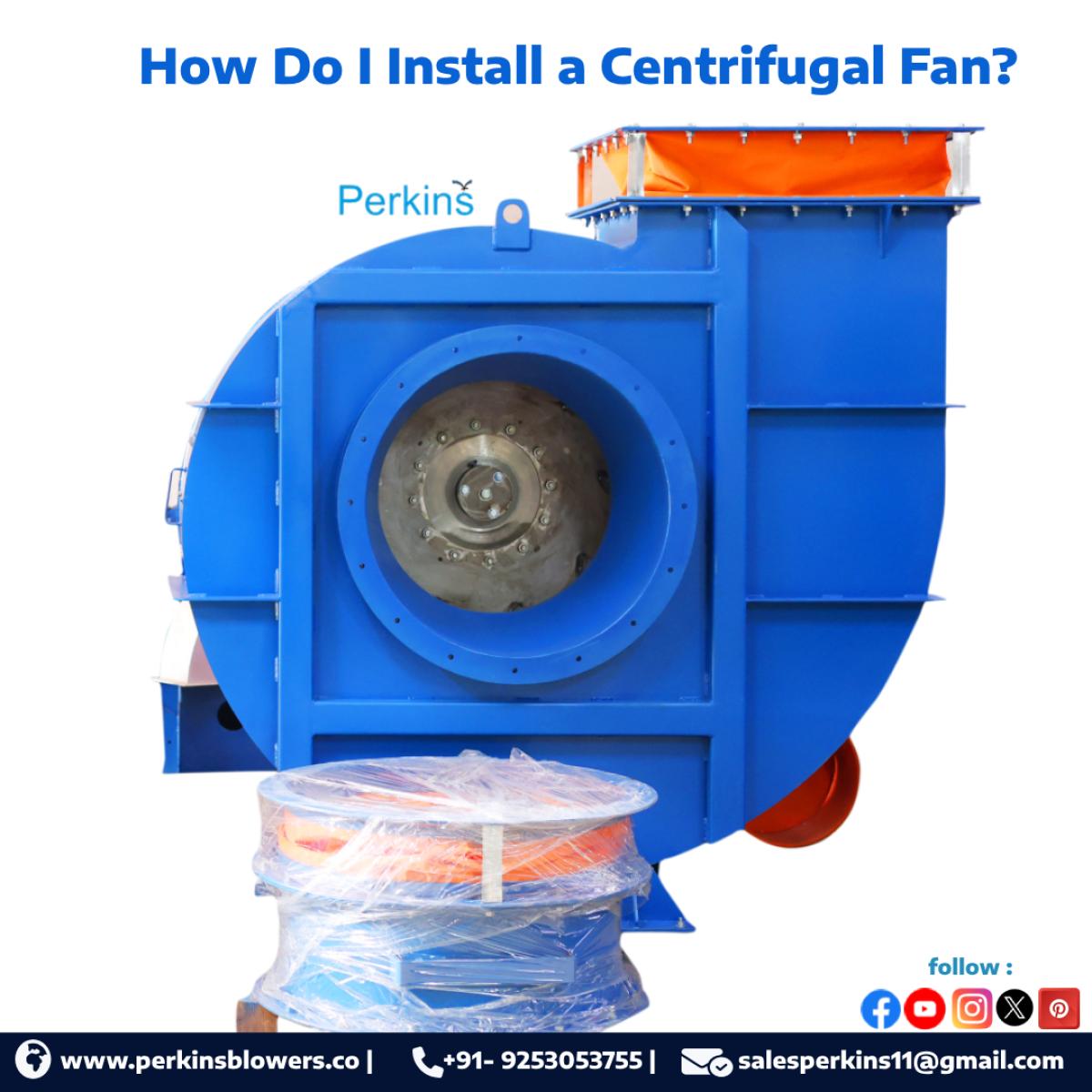

Installing a centrifugal fan may seem complex, but with the right approach, tools, and safety measures, the process can be straightforward and efficient. At Perkins Blowers, we design our centrifugal fans for easy installation while ensuring maximum performance and durability. Whether you are setting up a new ventilation system or replacing an old unit, this guide will walk you through the essential steps.
1. Understand the Fan and Its Purpose
Before starting the installation, identify the type of centrifugal fan you are working with—forward-curved, backward-inclined, or radial blade. Each design has specific applications, from clean air ventilation to handling dust or fumes. Understanding the fan’s purpose ensures correct placement and configuration.
2. Gather the Necessary Tools and Equipment
You’ll typically need:
- Wrenches and screwdrivers
- Level and measuring tape
- Mounting bolts and hardware
- Electrical wiring tools
- Safety gear (gloves, goggles, and helmet)
3. Prepare the Installation Site
Choose a location with adequate space for airflow, maintenance access, and vibration isolation. The foundation or support frame should be strong enough to handle the fan’s weight and operational vibrations.
4. Position the Fan Correctly
- Align the fan’s inlet and outlet with the ducting system.
- Ensure there is enough clearance around the unit for servicing.
- Use a level to make sure the fan sits evenly—misalignment can cause vibration and wear.
5. Mount the Fan Securely
- Bolt the fan to its foundation or support frame using vibration isolators.
- Double-check all connections to prevent movement during operation.
- If the fan is ceiling- or wall-mounted, ensure proper load-bearing capacity.
6. Connect the Ductwork
- Attach the inlet and outlet ducts with flexible connectors to reduce vibration transfer.
- Seal all joints to prevent air leakage.
7. Electrical Connections
- Follow the wiring diagram provided with the fan’s motor.
- Ensure the power supply matches the motor’s voltage and phase requirements.
- Only qualified electricians should handle wiring to ensure safety and compliance with local regulations.
8. Test Run and Adjustments
- Check for smooth rotation of the impeller before switching on the power.
- Run the fan briefly and listen for unusual noises or vibrations.
- Adjust the balance or alignment if needed.
9. Final Checks and Safety Measures
- Verify that all guards, covers, and safety features are in place.
- Ensure there is no obstruction in the airflow path.
- Record installation details for future maintenance.
Why Choose Perkins Blowers for Your Centrifugal Fan?
At Perkins Blowers, we manufacture centrifugal fans that are easy to install, energy-efficient, and built for long-term performance. Our team also offers installation guidance, technical support, and customized solutions to fit your unique needs.
Contact Perkins Blowers today to get the perfect centrifugal fan for your application and expert advice on installation and maintenance.
